M46 and M47 Space Walk Among the Stars

Charts to accompany the MP3 guide.

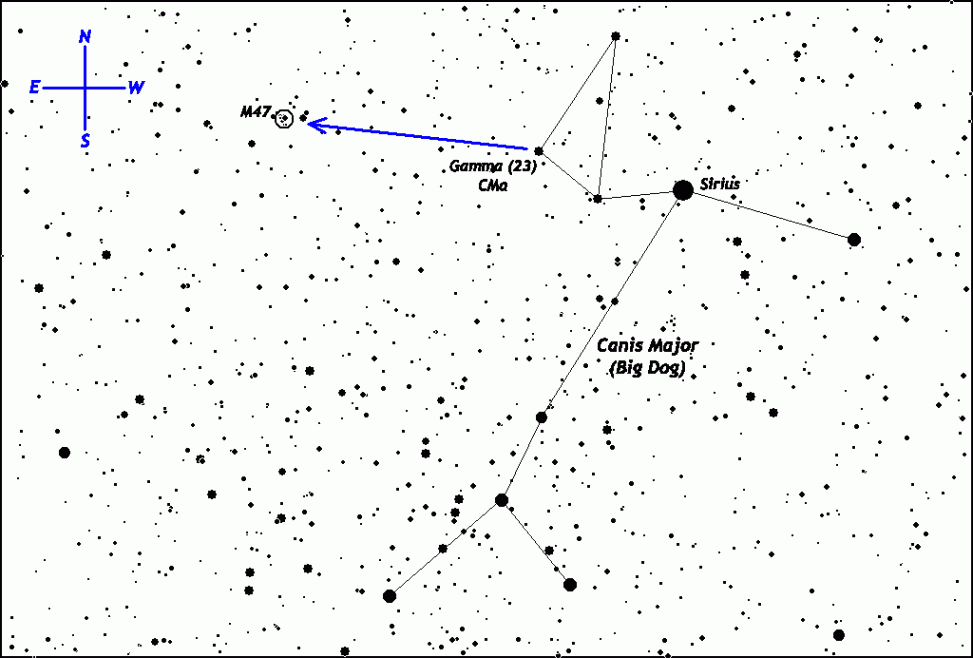

Chart 1: Finding the general area in the sky.


Chart adapted from Cartes du Ciel.

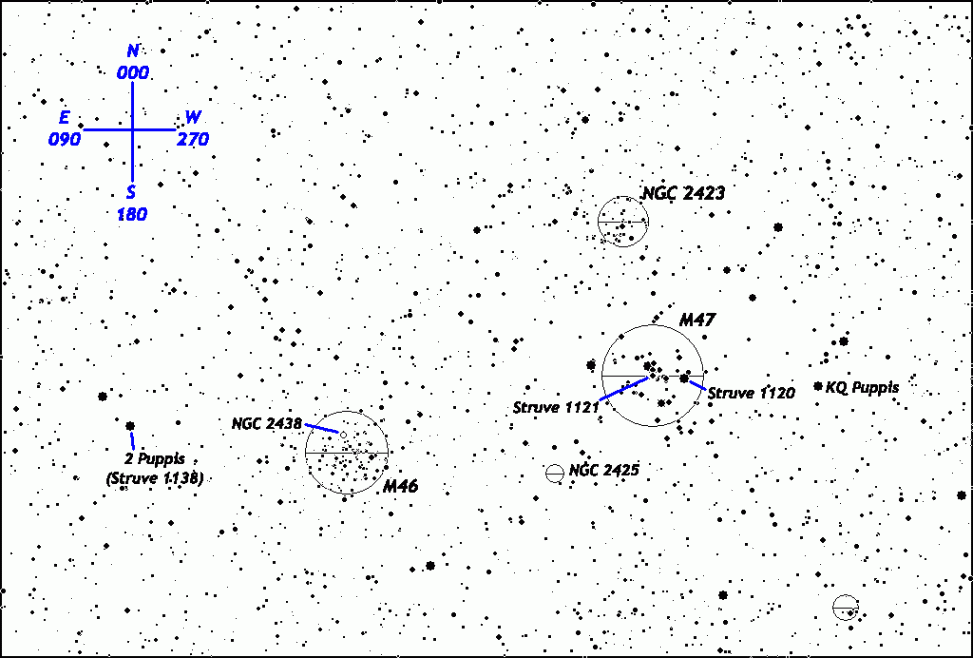

Chart 2: The objects. The chart is 4 wide


Chart adapted from Cartes du Ciel.



Image: M46 and M47 field. Hold cursor over the image to see objects from the MP3 space walk labeled. Note that North is up in this image, which is about 2-1/2 wide.

Bonus Challenge Object: Observers with 10-inch or larger telescopes (Have an 8-inch? Go ahead and try!), see if you can locate planetary nebula Minkowski 1-18. See chart below the main image chart.


(Image by Robert Reeves)



Image: Minkowski 1-18 (PK 231+4.1) **Bonus Challenge Object**. This planetary nebula is a very faint (14.0 magnitude) round 30" glow. Can you spot it? The DSS image below has north at top and is 15' wide. Correlate it to the larger field image above to find it. See Stephen Waldee's detailed description of successfully observing this tough one in a 10-inch. Not for the faint of heart or poor of vision. Good luck!


Minkowski 1-18

(Digital Sky Survey image)



Image: NGC 2423. Hold cursor over the image to see the position of star NGC 2423-3, around which a planet was discovered in 2007. North is up in this image, which is 15' wide.


(Digital Sky Survey image)



NGC 2425. North is up in this image, which is 15' wide.


NGC 2425

(Digital Sky Survey image)
